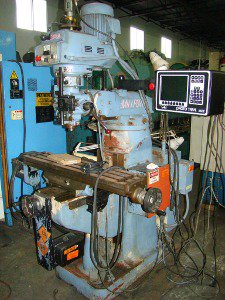

MILLPORT, ACRA EVS head, Prototrak
Location:
Hialeah, FL
Manufacturer:
Acra

Specifications

Condition:
used
Stock number:
6434
Division:
Metalworking
Canned cycles:
Position, rotate, circle pocket, bolt hole, morror, mill

Description

SPECIFICATIONS:
Size of table (length x width) 42" x 9"
Longitudinal travel 30"
Cross travel 12"
Vertical knee travel 16"
Main motor 3 HP
Spindle speeds--number Inf. variable
--range 50 to 5000 rpm
Spindle taper R-8
Electrical 440/3/60
Dimensions (L x W x H) 63" x 59" x 70"
Weight (approx.) 1,950 lbs.
PROTOTRAK MX2 CONTROL FEATURES:
Machine was upgraded with ACRA model WS-18VH EVS 3 HP head
2 axis CNC control, 3 axis digital readout
RS232 input/output to interface with electronic libraries
Recirculating ball nuts and screws for table and saddle
Interactive menu driven programming
Canned cycles: Position, rotate, circle pocket, bolt hole, morror, mill
continue mill, circular interpolation, arc, circle frame,
rectangular frame, 3 & 4 sided polygon pockets, Irregular pcokets
Diamter cutter compensation, Incremental/absolute programming
SWI Proto Trak MX2 controller, s/n 5959
EQUIPPED WITH:
Manual lubraction system, Worklight, Remote stop/go switch
Kurt power drawbar
