Top Seller

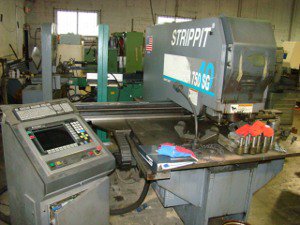

44 Ton, STRIPPIT, Super 750/40
Location:
Hialeah, FL
Manufacturer:
Strippit

Specifications

Condition:
used
Stock number:
6130
Division:
Metalworking

Description

Model number Super 750/40 SG
Year of Manufacture 1997
SPECIFICATIONS:
Capacity 40 metric tons 44 U.S. tons
Max material thickness .375 (9.5 MM)
Capacity mild steel 1.375" dia x .375"
3.5" dia x .135"
Axis travels 30" x 40"
Axis Drives (X and Y) Brushless Servo
Tooling Style Strippit Long, (Thin)
Gage positioning accuracy +/- .002"
Positioning speed Up to 800 IMP
Hydraulic pump motor 7.5 HP
Air consumption 90 psi, Negligible
Electrics 230/460/3/60
Machine dimensions (W x D x H) 106" x 91" x 76"
(Excludes controls and hydraulic system)
Approximate weight 11,770 lbs.
FEATURES:
One piece C frame construction, Hydraulic press drive, PC Technology,
Color SVGA monitor, 3.5" disc storage and RS232, Parts verification,
Geometric grid, Line at angle, arc, bolt hole circle and others, Zoom on
graphics, Stroke selector, Single, automatic, manual data input modes,
Inch/metric programming, 1-1/4" and 3-1/2" holders, Assorted tooling
