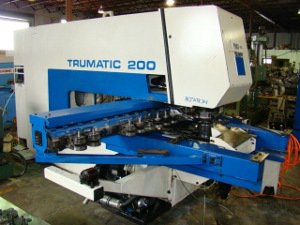

22 Ton, TRUMPF, TC200, Bosch-Trumagraph,
Location:
Hialeah, FL
Manufacturer:
Trumpf presses

Specifications

Condition:
used
Stock number:
6352
Division:
Metalworking

Description

Model number TC200
SPECIFICATIONS:
Capacity 22 tons
Maximum sheet thickness 1/4" mils steel
Maximum sheet size 50" x 80"
(above with repositioning) 50" x 160"
Maximum workpiece weight 330 lbs.
Maximum punch diameter 3"
Average tool change time 1.5 to 6.5 seconds
Minimum programmable increments 0.004"
Maximum hit rate--1" moves 265 spm
--nibbling 420 spm
Maximum positioning speed--Y-axis 1600 IPM
--X-axis 2400 IPM
Electrics 460/3/60
Machine dimensions (W x D x H) 170" x 120" x 82"
Approximate weight 18,000 LBS
EQUIPPED WITH:
Bosch-Trumagraph CNC control with CRT and graphics
15 station in-line tool changer (machine has 12 tools)
