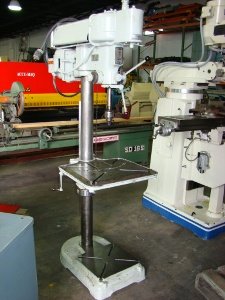

20", WALKER-TURNER, belt change, 500-2600
Location:
Hialeah, FL
Manufacturer:
Walker

Specifications

Condition:
used
Stock number:
6278
Division:
Metalworking
Subcategory:
Drilling & tapping

Description

SPECIFICATIONS:
Maximum distance spindle to column 10"
Drilling capacity in mild steel 3/4"
Drilling capacity in cast iron 1"
Column diameter 3-3/4"
Spindle taper #3 MT
Drilling depth 6"
Quill diameter 2-1/4"
Spindle speeds-number 5
-range (rpm) 500 to 2600
Table size 15" x 18"
Main motor 1 HP
Electrics 220/440/3/60/50
Net weight, approx. 485 lbs.
EQUIPPED WITH:
T-slotted 15" x 18" table
Table raising mechanism
Jacobs #14N 0" to 1/2" capacity drill chuck
