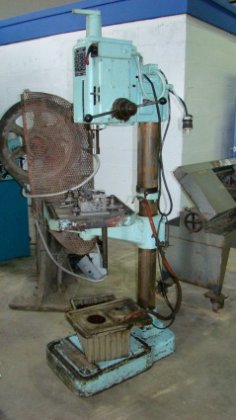

24", SOLBERGA No. SE7, geared
Location:
Hialeah, FL
Manufacturer:
N/A

Specifications

Condition:
used
Stock number:
5879
Division:
Metalworking
Subcategory:
Drilling & tapping

Description

SPECIFICATIONS:
Drilling capacity--mild steel 1"
--cast iron 1-1/4"
Column diameter 4-5/16"
Center of spindle to column 12"
Maximum diameter of workpiece 24"
Spindle travel (hand/power feed) 6-1/2"
Spindle taper No. 3MT
Spindle speeds--number 8
Spindle speeds--range (rpm) 120 to 1548
Spindle feeds--number 3
Spindle feeds--range (ipr) .004, .007 and .011
Table size 17-3/4" x 17-3/4"
Side table size 17-3/4" x 6-5/16"
Spindle nose to table (max.) 30-1/2"
Spindle nose to base (max.) 46-1/16"
Main motor power 1.5 / 1.2 HP
Electrics 220/3/60
Dimensions (L x W x H) 18" x 30" x 75"
Overall weight (approx.) 665 lbs.
EQUIPPED WITH:
Table raising mechanism, Sliding head.
