Top Seller

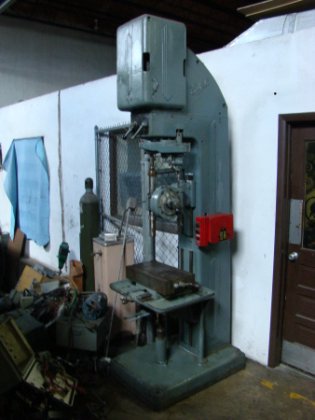

26", BUFFALO, 1" cap., 12
Location:
Hialeah, FL
Manufacturer:
N/A

Specifications

Condition:
used
Stock number:
535
Division:
Metalworking
Subcategory:
Drilling & tapping

Description

SPECIFICATIONS:
Center of spindle to column 13"
Sliding head adjustment 7"
Table size 11" x 20"
Spindle travel 5-1/4"
Spindle speeds--number 8
--range 150 to 3600 rpm
Spindle feeds--number 4
--range .003,.006,.009,.012 "/rev
Quill diameter 2"
Spindle taper #3MT
Spindle motor 2/1.3/1/.67 HP
Motor speed 3060/1695/1145/570 rpm
Electrics 220/3/60
EQUIPPED WITH:
Table raising mechanism
Two axis coordinate milling table
