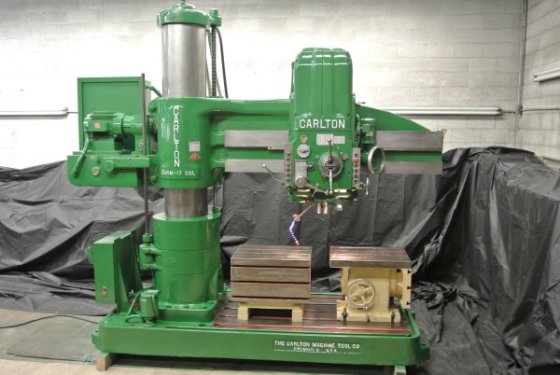

6' x 17", Carlton, World

6' x 17", Carlton, World Class Tool! #6MT, 1500 RPM, 4 leads, 18 Feeds, 15 HP, Power Elev, Power Clamp, Power Rapid Trav, 2 Box Tables, etc in Salt Lake City, UT

Location:
Salt Lake City, UT
Manufacturer:
Rapid
Model:
3A

Specifications

Condition:
used
Stock number:
9649
Division:
Metalworking
Electricals:
220/440 V
Approx weight:
24,000 lbs
Spindle feeds:
18from 4 to 125
Spindle speeds:
32from 15 to 1500 RPM
Threading leads:
48, 11.5, 14, 18
Main drive motor:
15 HP
Taper in spindle:
#6 MT
Approx dimensions:
132” H x 153” L x 55” W
Diameter of column:
17”
Max height under spindle:
72”
Max distance column to spindle:
72”
Subcategory:
Drilling & tapping

Description

General specifications are approximate and are subject to verification.
Max Distance Column to Spindle:72”
Max Height Under Spindle:72”
Diameter of Column:17”
Taper in Spindle:#6 MT
Spindle Speeds: 32from 15 to 1500 RPM
Threading Leads:48, 11.5, 14, 18
Spindle Feeds:18from 4 to 125
Main Drive Motor:15 HP
Electricals:220/440 V
Approx Weight:24,000 lbs
Approx Dimensions:132” H x 153” L x 55” W
Complete with:
•Power Elevation
•Power Clamp on Column
•Power Rapid Traverse on Head
•Coolant System
•2 Box Tables – Matching Height
•Operator’s Manual
Condition: Amazing! As fine as you can imagine!
