Top Seller

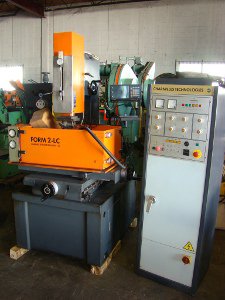

CHARMILLES, #FORM 2-LC, 50 Amp,
Location:
Hialeah, FL

Specifications

Condition:
used
Stock number:
6256
Division:
Metalworking

Description

Model number Form 2-LC
Year of manufacture 1994
Specifications:
Maximum process current 50 amp
Work tank volume (W x D x H) 32" x 12" x 12" (820x500x12mm)
Work table area (L x W) 19.5" x 13.75" (500x350mm)
Travels--X axis and Y axis 12" x 8" (300x200mm)
Maximum quill to table 22" (550mm)
Quill stroke 8" (200mm)
Maximum electrode load 132 lbs (60kg)
Maximum workpiece weight 1100 lbs (500kg)
Diaelectric reservoir 63 gallons (280 liters)
Electrics 220/3/60
Machine dimensions (W x D x H) 56" x 56" x 88"
Control dimensions (W x D x H) 22" x 22" x 68"
Approximate weight 2,200 lbs.
EQUIPPED WITH:
Sony LH11 three axis digital readout system, One shot lubrication
Brown & Sharpe 5" x 10" permanent magnetic chuck, Fire extinguisher
Set of levelling pads
