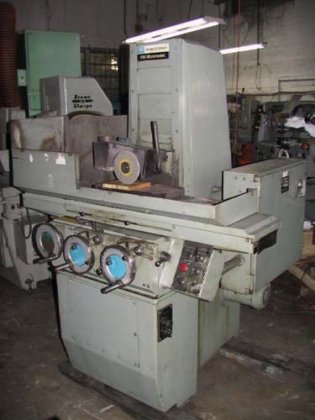

6" x 18", BROWN &
Location:
Hialeah, FL

Specifications

Condition:
used
Stock number:
5055
Division:
Metalworking
Subcategory:
Grinding

Description

SPECIFICATIONS:
Grinding capacity 6" x 18"
Height under 7" wheel 15-1/2"
Longitudinal hydraulic feed 5 to 100 fpm
Maximum longitudinal travel 22"
Cross hydraulic feed at reversal .01" to .25"
Continuous hydraulic traverse feed for
truing wheel 10 ipm
Continuous hydraulic traverse feed for
rapid traverse positioning of wheel 12 fpm
Cross hand wheel graduation 0.0002"
Cross fine-feed knob wheel graduation 0.0001"
Maximum cross travel 7"
Vertical hand wheel graduation 0.0002"
Vertical fine-feed knob wheel graduation 0.0001"
Vertical hand wheel movement per rev. 0.05"
Maximum vertical travel 15-3/4"
Vertical rapid positioning 40 ipm
Wheel capacity (OD x hole x width) 7" x 1-1/4" x 1"
Main motor 2 HP
Electrics 230/460/3/60
Dimensions (L x W x H) 66" x 59" x 75"
Weight, approx. 2,450 lbs.
EQUIPPED WITH:
Two (2) axis hydraulic operation, Coolant system
O.S. Walker "Ceramax" 6" x 18" fine pole permanent magnetic chuck
Vertical rapid positioning arrangement
