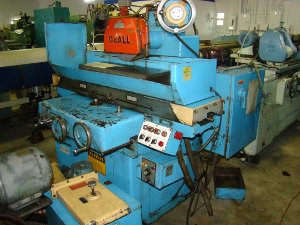

10" x 30", DOALL, #D1030-12,
Location:
Hialeah, FL

Specifications

Condition:
used
Stock number:
5568
Division:
Metalworking
Subcategory:
Grinding

Description

Model D1030-12
SPECIFICATIONS:
Capacity 10" x 30"
Table travel 12" x 34"
Table speed 5 to 125 fpm
Crossfeed automatic--increments 0 to 0.250"
--wheel dress 0 to 150 ipm
Crossfeed reference graduations 0.0002"
Crossfeed manual per rev of handwheel 0.100"
Downfeed reference graduations 0.0001"
Downfeed adjustment per rev of handwheel .050"
Direct motor drive 5 HP
Column raiser motor 1/4 HP
Grinding wheel capacity 12" x 1" x 3" bore
Dimensions (L x W x H) 131" x 67" x 75"
Electrics 230/460/3/60Hz
Weight, Net 4,455 lbs.
EQUIPPED WITH:
Magna-Lock 10" x 30" electro magnetic chuck, Coolant system
Bijur automatic lubrication
