Top Seller

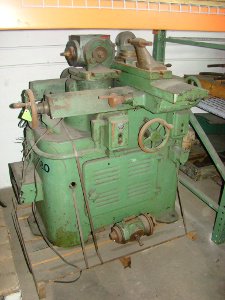

No. 2, CINCINNATI, s/n 1D2T1H-111,
Location:
Hialeah, FL

Specifications

Condition:
used
Stock number:
4135
Division:
Metalworking
Subcategory:
Grinding

Description

SPECIFICATIONS:
Table working surface 5-1/4" x 36"
Swing over table 10"
Distance between centers 27"
Distance between tailstock & workhead 21-1/2"
Table travel--longitudinal 16"
--cross 8"
Table swivels 180 degrees
Table graduations 90 degrees
Workhead spindle tapers #12 B&S
Grinding wheel movement--vertical 10.5"
--swivel 240 degrees
Maximum distance centerline spindle
to top of table 13-1/8"
Taper, maximum 2"/ft
Drive motor 3/4 HP
Electrics 230/460/3/60
Floor space required 56" x 68-1/2"
Net weight of machine 2300 lbs
EQUIPPED WITH:
Some miscellaneous attachments
