Top Seller

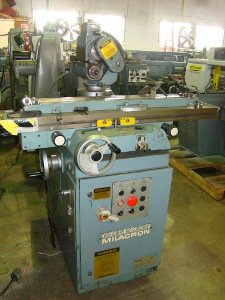

No. 2 MT, CINCINNATI, motorized
Location:
Hialeah, FL

Specifications

Condition:
used
Stock number:
6167
Division:
Metalworking
Subcategory:
Grinding

Description

SPECIFICATIONS:
CAPACITY:
Table working surface 6" x 36"
Swing over table 10"
Distance between centers 27"
Distance between tailstock & workhead 21-1/2"
Table travel--longitudinal 16"
--cross 10"
Table swivels 180 degrees
Table graduations 90 degrees
Grinding wheel movement--vertical 10-1/2"
--swivel 360 degrees
Taper, maximum 2"/ft
Spindle speeds--6" wheel 3,837 rpm
--3" wheel 6,442 rpm
Drive motor 1 HP
Electrics 230/460/3/60
Floor space required 46" x 53" x 66"
Net weight of machine 3000 lbs
MACHINE FEATURES:
Tilting wheelhead (15 degrees above & below), One-shot lubrication system
Replaceable hardened steel V-ways, Ball bearing anti-friction table
360 degrees eccentric wheelhead & swivel table
