Top Seller

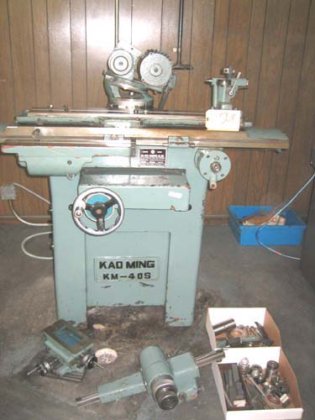

No. 40S, KAO MING, motorized
Location:
Hialeah, FL
Manufacturer:
N/A

Specifications

Condition:
used
Stock number:
5273
Division:
Metalworking
Subcategory:
Grinding

Description

SPECIFICATIONS:
Swing over table 10"
Distance between centers 27-1/2"
Distance between tailstock & workhead 22-3/4"
Wheelhead spindle taper ASA 50
Working surface 5-5/16" x 37"
Table travel--longitudinal 16"
--cross 10"
Table swivel movement +/- 60 degrees
Table graduation on end +/- 10 degrees
Grinding wheel spindle speeds 2600, 3700 or 6200 rpm
Wheelhead motor 1 HP
Electrics 220/440/3/60
Shipping dimensions (L x W x H) 51" x 62" x 60"
Weight approximate 2560 lbs.
EQUIPPED WITH:
Tilting wheel head, Roller bearing slideway, Tailstock,
Helical grinding attachment--suitable for grinding the relief and rake
angle of spiral cutters or the straight teeth of hobs, end mills
and center drills. Has a 40MT taper hole.
Center gauge, Grinding wheel sleeves, Toothrest
