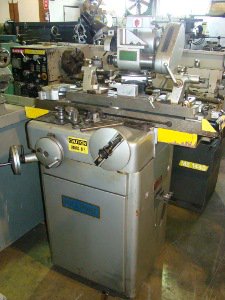

No. 714, MILLPORT, motorized wheelhead,
Location:
Hialeah, FL
Manufacturer:
N/A

Specifications

Condition:
used
Stock number:
6166
Division:
Metalworking
Subcategory:
Grinding

Description

SPECIFICATIONS:
CAPACITY:
Table working surface 5-1/4" x 27-1/4"
Sub table 8" x 38"
Swing over table 8"
Distance between centers 15"
Longitudinal travel of table 14"
Cross travel of table 7-3/4"
Table swivels--either way 15 degrees
Vertical adjustment of wheelhead 7"
Wheelhead swivel 360 degrees
Head stock tilt, above and below 30 degrees
Grinding wheel speed 3600 rpm
Drive motor 1/2 HP
Electrics 220/440/3/60
Floor space required 41" x 55" x 63"
Net weight of machine 1400 lbs
EQUIPPED WITH:
Sensative workhead with 24 index disc, 6" wheel guard, Center gauge
Universal tooth rest, Plain tooth rest, Pair of tailstocks
Dovetail clamp assembly
