Location:
Marlboro Township, NJ
Model:
Wg 250 25 443

Specifications

Condition:
used
Stock number:
10649

Description

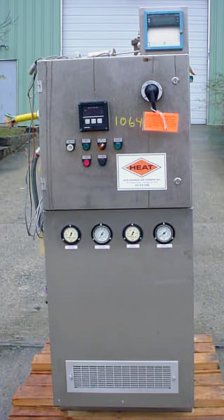

Recirculating fluid heater by heat exchange and transfer inc, (carnegie, pa) model wg 250-25-443, serail # j-5117. Features packaged closed loop design for circulating water/glycol at temperaures up to 250 f at 15 psi, 50 to 250 degrees f operating temperture range, 2 to 15 gpm heated media flow rate, 9 gallon fill tank, 5 gpm max flow rate, 27 kw at 460-480 volt, 3 phase, 37 amp max (wired for 480 service), nema 4 x, all cabinet enclosed with polished stainless steel enclosure, heater shell and all piping in the system are sch. 40 seamless 304 stainless steel pipe. Formerly used in pharmaceutical service.
