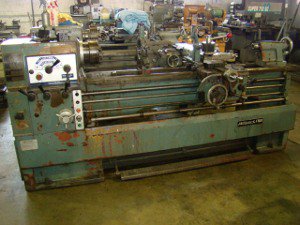

17" x 60", MILLPORT, #1760G,
Location:
Hialeah, FL
Manufacturer:
N/A

Specifications

Condition:
used
Stock number:
6332
Division:
Metalworking
Subcategory:
Lathes, engine

Description

Model number 1760G
Year on manufacture 1982
SPECIFICATIONS:
Swing over bed 17-1/4" (440mm)
Swing over cross slide 9 (225mm)
Swing in gap 25-1/8" (640mm)
Distance between centers 60" (1500mm)
Spindle hole 2-1/16" (52mm)
Spindle nose D1-6 camlock
Spindle speeds--number 12
--range 32 to 2000 rpm
Inch threads--number 40
--range 4 to 56 tpi
Metric threads--number 23
--range 0.5 to 7 mm
Bed width 11-3/4" (300mm)
Tailstock taper #4 MT
Spindle travel 5" (127mm)
Spindle diameter 2-1/4" (58mm)
Main motor power 5 HP
Electrics 220/440/3/60
Weight (approx.) 5060 lbs. (2300kg)
Floor dimensions 107" x 42" x 48"
EQUIPPED WITH:
3 jaw chuck, Gap, Steady rest, Follow rest, Coolant system,
Thread dial, Foot brake, Dorian quick change toolpost, Inch/metric threading
