27 1/2" x 144" cc,
Location:
Salt Lake City, UT
Manufacturer:
Monarch
Model:
TUG-40
Weight:
20,000 lbs

Specifications

Condition:
used
Stock number:
9651
Feeds:
48.0038 to .240
Threads:
48¾ to 46
Division:
Metalworking
Main motor:
25 HP
Electricals:
220/440 Volt
Inventory no:
9651
Spindle bore:
2-1/4”
Spindle nose:
D1.8
Width of bed:
22”
Approx weight:
20,000 lbs
Spindle speeds:
1614 to 600 RPM
Swing over bed:
27.5”
Tailstock taper:
#5
Swing over slide:
18.5”
Approx dimensions:
20’x5’x5 ½ ‘
Max center distance:
144”
Subcategory:
Lathes, engine

Description

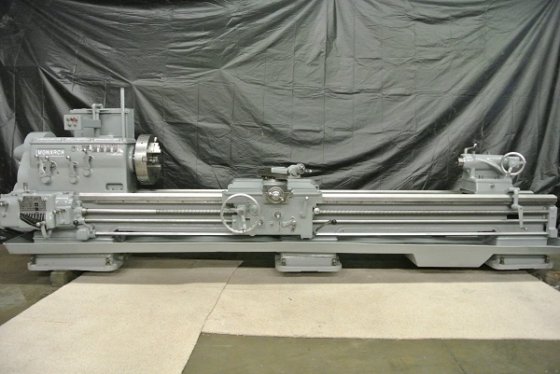

Pre-Owned 27.5” x 144” Low Hour Monarch Heavy Duty Engine Lathe
Model: 20CMSerial No: 39327
General specifications are approximate and are subject to verification.
Swing over bed:27.5”
Swing over slide:18.5”
Max center distance:144”
Spindle nose:D1.8
Spindle bore:2-1/4”
Spindle speeds: 1614 to 600 RPM
Tailstock Taper: #5
Width of bed: 22”
Threads: 48¾ to 46
Feeds:48.0038 to .240
Main motor:25 HP
Electricals:220/440 Volt
Approx Weight:20,000 lbs
Approx Dimensions:20’x5’x5 ½ ‘
Complete with:
•21” 3 Jaw Chuck
•Hardened Ways
•Tool Block
•Steady Rest
•Taper Attachment (no clamp)
•Coolant Pump
•Chip Pan
Condition: Low hr. use. Runs very wells. Ways are great.
Inventory No: 9651
