20"/44" x 36"/54"cc, Standard Modern,
Location:
Salt Lake City, UT
Model:
Power TurnSerial No 43517
Spindle Bore:
Spindle Nose:
D16

Specifications

Condition:
used
Stock number:
9663
Feeds:
20.00015 to .05320.041.35
Threads:
3872 to 235. .2 14.0 mm
Division:
Metalworking
Electricals:
220/440 V
Inventory no:
9663
Spindle bore:
Spindle nose:
D16
Width of bed:
14”
Approx weight:
5,500 lbs
Spindle speeds:
1817 to 1000 RPM
Swing over bed:
20”
Tailstock taper:
#4
Main drive motor:
7.5 HP
Approx dimensions:
55” H x 85” L (closed) 109” L (open) x 44” W
Swing through gap:
40”
Max center distance:
Closed-36” Open-54”
Swing over cross slide:
12 ½”

Description

We are pleased to offer, subject to prior sale and our conditions of sale, the following for your consideration: *Amazing Low Hour Lathe*

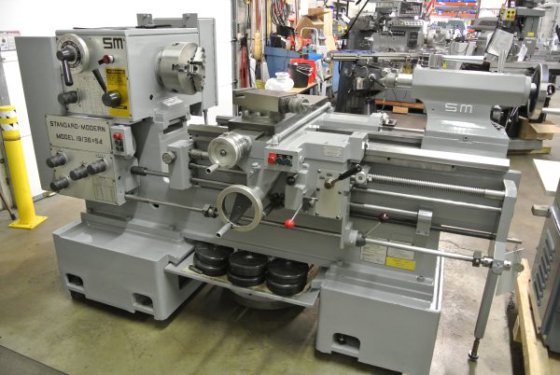

Pre-Owned 19/44 x 36/54 Standard Modern Gap Lathe
Model:19/36x54Serial No: 11453
General specifications are approximate and are subject to verification.
Swing over bed:20”
Max center distance: Closed-36” Open-54”
Swing over cross slide:12 ½”
Swing through gap:40”
Spindle nose:D16
Spindle Speeds:1817 to 1000 RPM
Spindle bore:2”
Tailstock taper:#4
Width of bed:14”
Threads: 3872 to 235. .2 14.0 mm
Feeds:20.00015 to .05320.041.35
Main Drive Motor:7.5 HP
Electricals:220/440 V
Approx Weight:5,500 lbs
Approx Dimensions:55” H x 85” L (closed) 109” L (open) x 44” W
Complete with:
•10” 3 Jaw Chuck
•22” Face Plate “T” Slots
•Hardened Ways
•Taper Attachment with Clamp
•Machine Light
•Chip Pan
•6 Pads
•Coolant, no tank or pump
Condition: Mint! Wonderful! Looks and Runs as New.
Inventory No: 9663
