Top Seller

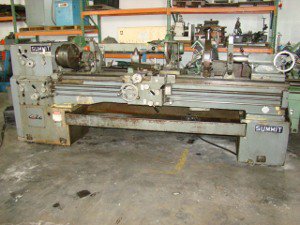

19" x 80" cc, SUMMIT,
Location:
Hialeah, FL
Manufacturer:
Summit lathes

Specifications

Condition:
used
Stock number:
6337
Division:
Metalworking
Subcategory:
Lathes, engine

Description

Year of Manufacture 1985
SPECIFICATIONS:
Swing over bedways 19"
Swing over cross slide 10-3/4"
Swing over gap 27"
Distance between centers 80"
Spindle speeds--number 12
Spindle speeds--range 22-1500 rpm
Hole thru spindle 4-1/8"
Spindle nose type D1-8 camlock
Headstock center No 5MT
Threads per inch--number 56
--range 3/4 to 92
Metric threads--number 35
--range 0.25 to 23
Longitudinal feeds--number 56
--range .0010 to .129
Compound rest travel 6-1/4"
Cross slide travel 13-3/4"
Tailstock barrel travel 8-1/2"
Tailstock barrel diameter 3"
Tailstock barrel taper No 5MT
Width of bed 13-3/4"
Hardened & ground inserted ways yes
Main drive motor 10 HP
Electrics 220/440/3/60
Overall weight 6800 lbs
MACHINE EQUIPED WITH:
Three (3) jaw chuck, Square turret tool post
Taper attahcment, 2-Steady rests, Follow rest
Thread dial, Four (4) position stop, Leveling pads
Coolant system, Lingitudinal stop
