Location:
Marlboro Township, NJ
Model:
Spiral Lift Conveyor

Specifications

Condition:
used
Serial number:
137410T106
Stock number:
13357
Subcategory:
Miscellaneous

Description

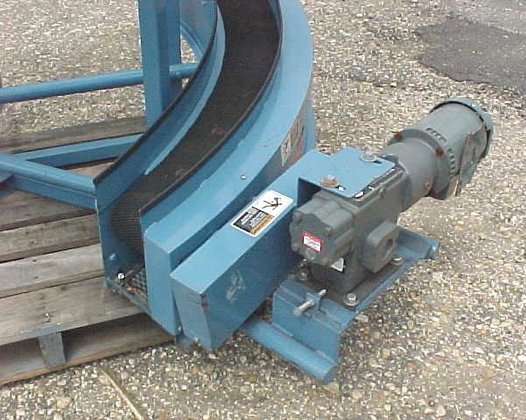

"spiral lift conveyor" by portec, flowmaster division (canon city colorado) model a306sp450, serial # 137410 t106. Features operation as lowering conveyor, 6" rough faced belt traveling in 42" radius from 80" starting height to 10" discharge height, total diameter 84", u. S. Electric 1 horsepower drive 230/460/3 phase voltage coupled to windsmith gear reducer at 50 to 1 ratio yielding shaft speed of 35 rpm, painted steel construction designed for 6" wide maximum package width with fixed 3" high guard rails, includes extension stand elevating all dimensions 24", purchased for use in pharmaceutical service and not installed. Oad 84" x 84" (stand 24" x 60")
