Location:
Marlboro Township, NJ
Model:
Spiral Lift Conveyor

Specifications

Condition:
used
Serial number:
137410T106
Stock number:
13358
Subcategory:
Miscellaneous

Description

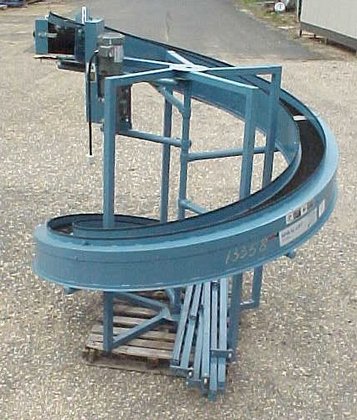

"spiral lift conveyor" by portec, flowmaster division (canon city, colorado) model aa306sp450, serial # 137410 t106. Features operation as lift conveyor, 6" rough faced belt traveling in 42" radius from 10" starting height to 80" discharge height, total diameter 84", u. S. Electric 1 horsepower drive 230/460/3 phase voltahe coupled to windsmith gear reducer at 50 to 1 ratio yielding shaft speed of rpm, painted steel construction designed for 6" wide maximum package width with fixed 3" high guard rails, 24" high floor stand included adding to dimensions. Unit purchased for use in pharmaceutical service and not put into use. Oad 84" x 84" (24" x 60" stand)
