Location:
Marlboro Township, NJ
Model:
Screw Conveyor 12x10

Specifications

Condition:
used
Serial number:
99D142
Stock number:
13774
Subcategory:
Screw

Description

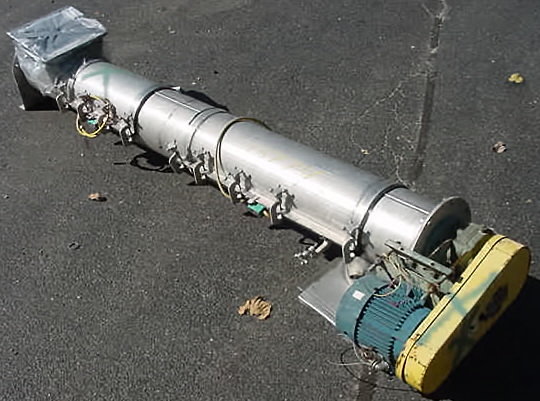

12" diameter x 10' long stainless steel food grade screw conveyor with 8" pitch by b. W. Sinclair inc. (witchita falls, texas), model 12, serial # 99d142. Features tubular body, 8' conveyor working length measured inlet to outlet center, conveyor origonally set to operate at apx 15 degree incline, 13" x 13" inlet with 2" flanged connection, 12" diameter discharge with slide gate, straight connection and angled 1/2" injection port, dual hinged service doors 24" and 42" long x half tubular body, 3 horsepower, 1760 rpm drive by marathon, 230/460/3 phase voltage driving dodge on shaft 15. 3 to one gear reducer for final screw speed of 115 rpm. Formerly used in food industry (coffe and coco)
