Top Seller

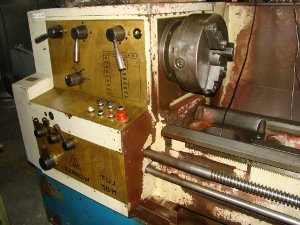

22" x 120" cc, TARNOW,
Location:
Hialeah, FL
Manufacturer:
N/A

Specifications

Condition:
used
Stock number:
6379
Division:
Metalworking
Subcategory:
Lathes, engine

Description

Year of Manufacture 1997
SPECIFICATIONS:
Swing over bedways 22"
Swing over cross slide 14-1/2"
Swing over gap 31-1/2"
Distance between centers 120"
Spindle speeds--number 16
Spindle speeds--range 20-1600 rpm
Hole thru spindle 3-1/2"
Spindle nose type D1-8 camlock
Threads per inch--number 70
--range 1/4 to 56 tpi
Metric threads--number 59
--range 0.5 to 112mm
Compound rest travel 8"
Cross slide travel 13"
Tailstock barrel travel 6"
Tailstock barrel diameter 3-1/8"
Tailstock barrel taper No 5MT
Width of bed 14-1/2"
Main drive motor 15 HP
Electrics 230/460/3/60
Overall weight 8500 lbs
Dimensions (L x W x H) 180" x 52" x 60"
MACHINE EQUIPED WITH:
12" three (3) jaw chuck, Four jaw chuck, Steady rest, Coolant system
Quick change toolpost, Full rear guarding, Electro-magnetic clutches
Two (2) way rapid londitudinal traverse, Thread dial
