Location:
Marlboro Township, NJ
Model:
5 Cubic Foot Dryer

Specifications

Condition:
used
Stock number:
12732
Subcategory:
Miscellaneous

Description

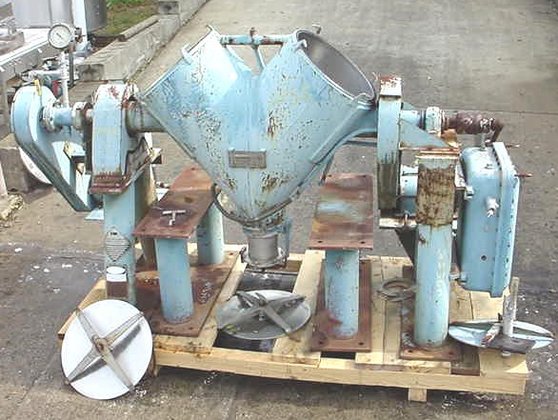

Patterson kelly 5 cubic foot working capacity liquid solids twin shell processor converted to rotary vacuum dryer, serial # 252642. Features product density rating of 70 pounds per cubic foot capacity, national board rated (# 43706) shell for full vacuum service @ 250 degrees f, shell jacket rated for 30 psig @ 250 deg. F, shell is chain driven by . 75 horsepower reeves variable speed drive, 22-222 rpm, dryer is equipped for liquid solids bar and still includes 5 horsepower drive by reeves (disconnected from bar drive pulley), dryer is mounted on factory tubular frame with drum height extensions, all drives are ul rated for hazardous locations under class i, group d and class ii, groups e,f and g, 230/460/3 phase voltage with explosion proof control panel (1979), stainless steel food grade contact surfaces, 6" discharge with butterfly valve, two removable charging port covers. Formerly used in food ingredient manufactuering. Shell has small internal implosion.
