Location:
Marlboro Township, NJ
Model:
Rotary Vacuum Dryer

Specifications

Condition:
used
Stock number:
13585
Subcategory:
Miscellaneous

Description

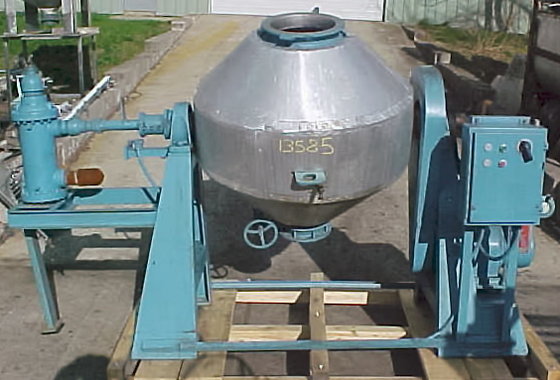

21 cubic foot total capacity (13 cu/ft working capacity) stainless steel rotary double cone vacuum dryer by paul o. Abbe (aaron equip. Chicago) serial # 84113. Features polished food grade wetted parts, fully jacketed shell with insulation and non factory aluminum shrouding, 3 horsepower reeves variable speed drive with manual speed control for co shaft rpm of 11. 3 to 45, chain and sprocket driven shell at apx 2. 5 to 1 reduction, full two piece chain guard, motor is tefc, shell inlet includes shell and tube heat exchanger with ss body and steel heads formerly used as condenser, filter on internal shell inlet, 8" discharge with manually operated butterfly valve, 14" charging port (cover required), mounted in painted steel frame. Formerly used in mild chemical service.
