Top Seller

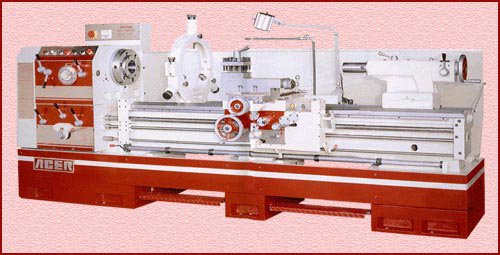

ACER 29" Series Lathes in
Location:
Hialeah, FL
Manufacturer:
Acer lathes

Specifications

Condition:
used
Stock number:
4046
Division:
Metalworking
Net weight:
(7,650LBS) (7,680LBS) (9,190LBS) (10,070LBS)
Follow rest:
500.00
24" face plate:
1,050.00
Drive plate 16:
500.00
Rear tool post:
1,500.00
Floor dimension:
11O" x 50", 129" x 50", 169" x 50", 209" x 50"
Live center, #5mt:
620.00
Four (4) way toolpost:
800.00
Micrometer carriage stop:
300.00
Six (6) position carriage stop:
400.00
Subcategory:
Lathes, engine

Description

Dynamic 2960G. . . $ 33,100.00 Dynamic 29120G $ 38,100.00
Dynamic 2980G. . . $ 34,900.00 Dynamic 29160G $ 42,300.00
OPTIONAL ACCESSORIES:
24" 4 jaw independent chuck, D1-11, with back plate . . . . . . . . 3,900.00
24" 4 jaw independent chuck, D1-11, with direct mount . . . . . . . 5,000.00
24" face plate. . . . . . . . . . . . . . . . . . . . . . . . . . . 1,050.00
Follow rest . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500.00
Micrometer carriage stop. . . . . . . . . . . . . . . . . . . . . . 300.00
Six (6) position carriage stop. . . . . . . . . . . . . . . . . . . 400.00
Taper turning attachment (installed). . . . . . . . . . . . . . . . 2,750.00
Drive plate 16" . . . . . . . . . . . . . . . . . . . . . . . . . . 500.00
Rear tool post . . . . . . . . . . . . . . . . . . . . . . . . . . 1,500.00
Four (4) way toolpost . . . . . . . . . . . . . . . . . . . . . . . 800.00
DORIAN quick change tool post with 6 tool holders (DA). . . . . . . 2,000.00
Live center, #5MT . . . . . . . . . . . . . . . . . . . . . . . . . 620.00
NEWALL DP700 lathe pacakge digital readout system--installed. .60". 3,231.00
Newall DP700 lathe package digital readout system--installed. .80". 3,768.00
Newall two axis "LATHEPAC" digital readout system--installed. .120" 4,995.00
Newall two axis "LATHEPAC" digital readout system--installed. .160" 6,350.00
FLOOR DIMENSION: 11O" x 50", 129" x 50", 169" x 50", 209" x 50"
NET WEIGHT: (7,650LBS) (7,680LBS) (9,190LBS) (10,070LBS)
STANDARD ACCESSORIES:
Removable gap, Steady rest with roller jaws, Follow rest,
20" 4 jaw chuck (D1-11), Longitudinal carriage stop, Micrometer stop,
Coolant system, 20" face plate, Halogen light, Full length splash guard
Assorted tools, Operation and service manual, Four way toolpost,
Automatic longitudinal multiple feed stop, Rapid carriage traverse
MACHINE FEATURES:
15 HP single speed motor, Ampere meter, Hardened and ground bedways
Inch and metric threading (no gear change required), Dual inch/metric
dials on cross slide & compound (inch dial only on longitudinal handwheel)
Removable chip pan, Headstock with magnetic clutch & electric brake
SPECIFICATIONS:
Swing over bed 29-1/8"
Swing over cross slide 20-1/2"
Swing in gap 37-25/32"
Spindle hole 4-1/8"
Spindle nose D1-11 camlock
Spindle speeds--number 12
--range 25 to 1200 rpm
Inch threads--number 45
--range 2 to 56 tpi
Metric threads--number 31
--range 0.5 to to 14 mm
Feeds--number
--range (longitgitudinal) .0012" to .0287"
--range (cross) .0004" to .0118"
Bed width 16-1/2"
Tailstock taper #5 MT
Spindle travel 7"
Spindle diameter 3-1/32"
Main motor power 15 HP
Electrics 220/440/3/60 HZ
