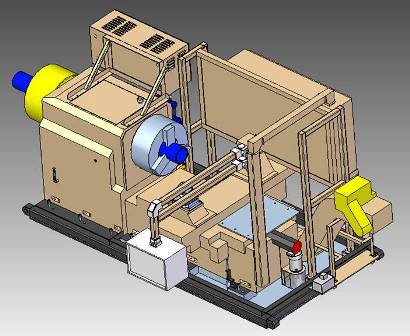

45" x 59", Tacchi, 2
Location:
Longview, TX
Manufacturer:
N/A

Specifications

Condition:
used
Stock number:
102013
Division:
Metalworking

Description

Swing over the cross slide 45"
Bed Width 35.43"
Saddle Length 46.85"
Tailstock None
Height from floor to centerline, including grouting 59"
Spindle Hole 14.569"
Spindle Speed (variable) 25 to 500 RPM
Cross Slide Stroke 28.54"
X axis Ball Screw Diameter and Pitch 1.77" x .394"
Z axis Ball Screw Diameter and Pitch 2.25" x .394"
Main Spindle Drive (Vector digital) Baldor, 100 HP
CNC Control, digital Fanuc OTC
X axis Feed Motor Fanuc 20S
Z axis Feed Motor Fanuc 30S
Power Consumption 460/3/60 - 96KVA
Installation Area 19, L x 14' W x 9' H
