mrm/elgin 24 head rotary piston
Marlboro Township, NJ

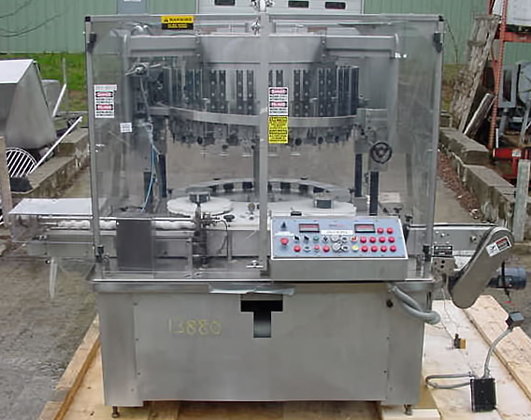

Rotary Piston Filler




Features all stainless steel sanitary pharmaceutical grade design, 24 vertically mounted 1" id pistons with fill volume range of 10 ml (. 33 oz) to 60 ml (2. 0 oz) and maximum capacity with existing tooling is 64 ml, filler maximum capacity is 16. 4 ounces when tooled with it's maximum size piston of 2. 75" diameter, fill nozzles are at 5. 500" centers, manufacturer rates maximum speed to 360 cpm, operator control panel mounted on machine front features digital readout for cpm/fill volume, machine speed conrol, no fill feature auto or on, function indicator and fault lights, no bottle/no fill feature, power lift-lower on piston turrett and fill volume cam, valve closure cam has manual position adjustment, spill tray on filling table with two 1. 5" outlets with tri clamp connections in rear corners of machine, filler will accept bottom up fill cam and is presently fitted with flat cam designed not to raise container tables durning filling, short in feed and discharge conveyor with drive, eight pocket infeed and discharge star wheels. Formerly used in branded otc pharmaceutical packaging of nasal treatment in 30 and 45 ml sizes. Includes large quantity of spare mechanical and electrical parts. 10' x 8' footprint required. Origonal manual included.
