Location:
Marlboro Township, NJ
Manufacturer:
Elgin fillers
Model:
Twin

Specifications

Condition:
used
Stock number:
15233
Subcategory:
Piston

Description

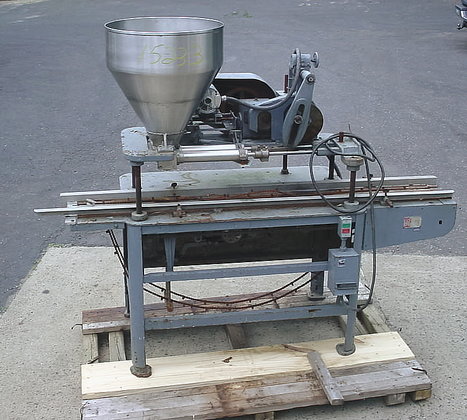

Elgin "twin" piston filler, featuring all stainless steel food grade contact surfaces, rated for 30 to 50 containers per minute depending on product and container sizes, twin 16 ounce capacity pistons (maximum as based on 2" id piston with 9. 5" stroke), apx. 10 gallon stainless steel steep cone hopper mounted over dual rotary piston valves, intermittent motion lug chain conveyor with lugs on 5" centers, conveyor lanes are apart on 4" centers, equipped with bottom up filling feature, . 75 horsepower motor by marathon, variable speed drive using variable cone type pulley, manually adjustable for varying height containers, painted steel frame, overall dimensions 80" x 36" x 76" high, 230/460/ 3 phase voltage, reconditioning and custom modifications available on this fiiler. Formerly used in cosmetic and personal care products packaging.
