Top Seller

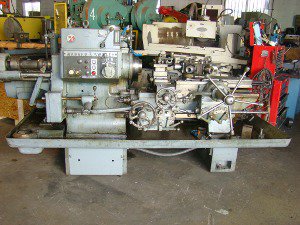

No. 5, WARNER & SWASEY,
Location:
Hialeah, FL

Specifications

Condition:
used
Stock number:
6174
Division:
Metalworking

Description

Lot number 39
Model M-2250
SPECIFICATIONS:
Swing over bed 20"
Swing over cross slide 10-1/4"
Maximum distance spindle nose
to rear of cross slide 28-7/8"
Maximum distance spindle nose
to turret face 36-1/2"
Minimum distance spindle nose
to turret face 5-1/2"
Maximum length turned 13"
Collet chuck capacity--round 2-1/2"
--square 1-3/4"
Spindle speeds-----number 24
--range 25 to 1556 rpm
Spindle nose type A1-8"
Carriage longitudinal feeds--number 6
--range .004" to .045"
Carriage cross feeds--number 6
--range .003" to .027"
Turret feeds--number 6
--range .005" to .048"
Main motor 20/10 HP
EQUIPPED WITH:
Warner & Swasey #1249-1023 master collet, Four way toolpost,
Okuma hydraulic tracer, Six position turret stop, Coolant
