Top Seller

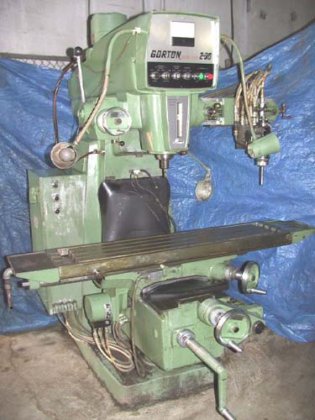

No. 2-30, GORTON, 12" x
Location:
Hialeah, FL
Manufacturer:
N/A

Specifications

Condition:
used
Stock number:
4360
Division:
Metalworking

Description

SPECIFICATIONS:
Motor 5 HP
Taper #40 NS
Speeds--number Infinitely Variable
Speeds--range 25 to 3500 rpm
Quill travel 6" (150mm)
Table size 12" x 54" (300x1350mm)
Longitudinal travel--manual 36" (900mm)
Cross travel 12" (300mm)
Vertical knee travel 15" (375mm)
Main motor 5/2-1/2 HP
Electrics 230/3/60
Dimensions (L x W x H) 82" x 92" x 90"
Weight, approx. 4,500 lbs.
ACCESSORIES INCLUDED WITH MACHINE:
Trace-Master 3D hyrdaulic tracing head used for 360 degrees
profiling and contouring
Gorton 40 taper flex collet tool holder set
Coolant, Work lamp
