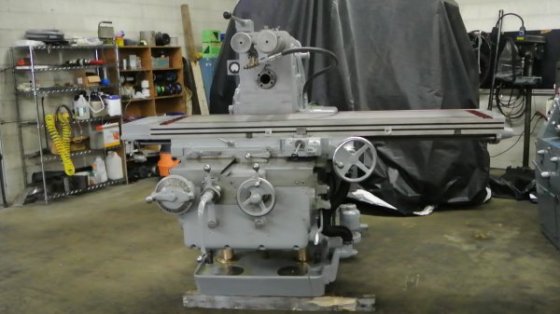

No. 430 TF, Kearney &
Location:
Salt Lake City, UT
Manufacturer:
KEARNEY & TRECKER
Model:
430TF

Specifications

Condition:
used
Stock number:
9629
Feeds:
32 changes from 3/8 to 90”
Division:
Metalworking
Main motor:
30 HP
Electricals:
220/440 Volt
Cross travel:
16”
Inventory no:
9629
Approx weight:
12,500 LBS
Spindle speeds:
16 changes from 15 to 1500 RPM
Taper in spindle:
#50
Approx dimensions:
74” H x 108” L x 94” W
Longitudinal travel:
45”
Table working surface:
20” x 80”

Description

General specifications are approximate and are subject to verification.
Table Working Surface:20” x 80”
Longitudinal Travel:45”
Cross Travel:16”
Knee Travel 18”
Spindle Speeds:16 changes from 15 to 1500 RPM
Taper in Spindle:#50
Feeds:32 changes from 3/8 to 90”
Main motor:30 HP
Electricals:220/440 Volt
Approx Weight:12,500 LBS
Approx Dimensions:74” H x 108” L x 94” W
Complete with:
•Wide H.D. Knee w/Twin Screws
•Power Feed in all Directions
•Power Rapid Traverse, 3 Way
•Coolant System
Condition: From Long Term Storage. Runs Great! Looks Great! Is Great!
Inventory No: 9629
