Location:
Marlboro Township, NJ, USA
Price:
No price
Model:
Receiver Bin

Specifications

Condition:
used
Stock number:
13398
Subcategory:
Hoppers & bins

Description

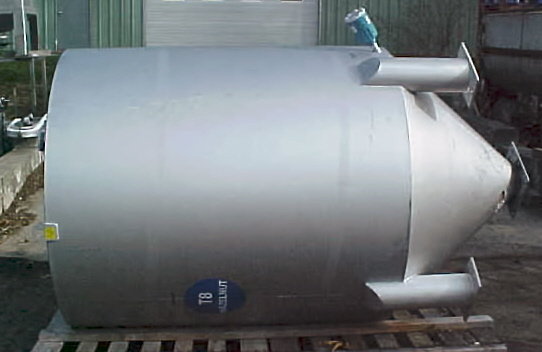

124. 4 cubic foot (total capacity) stainless steel bulk solids receiver bin, (930. 5 gal/3522 liter), 60" diameter x 66" straight side, 36" deep 45 deg. Cone bottom, 6. 5" center bottom outlet with 12. 5" x 12. 5" connection flange, 3" top side tangential product inlet, 3" suction inlet and 4" top breather inlet, upper and lower level indicator mounts, three lifting lugs, 24 x 20 side service port centrally located on side wall with bolt on cover, four- 6" diameter legs with 6. 5" x 12" mounting terminating before end of cone. Oad: 72" x 9' long. Formerly used in confectionary industry.
