Location:
Marlboro Township, NJ
Model:
Half Gallon Tank

Specifications

Condition:
used
Stock number:
11259
Subcategory:
Kettles
Subcategory 2:
Agitated

Description

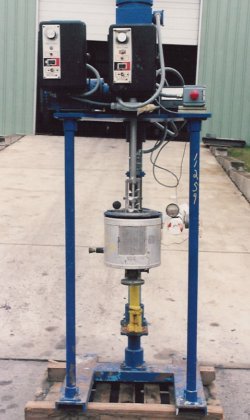

1/2 gallon scrape agitated jacketed lab process vessel by b and g, serial # 12751-26001. Features sanitary design side wall scraping agitator with teflon blades, twin 6 blade 4" diameter x 9" deep vessel with dish bottom, center bottom discharge with flush 1 " sanitary ball valve with tri clamp connection. Vessel features full stainless steel jacket with internal polished finish, national board rating (#286) for 150 psi wp @ -20 deg f to 550 deg f, mounted in painted steel frame with manually operated hydraulic vessel lift. Agiatators are driven by independant 1/2 horsepower reliance drives with wood ac speed controllers, control panel with turbine speed read out, maximum scraper speed 43 rpm, maximum turbine spped 345, two piece cover. 115 volt 1 phase.
