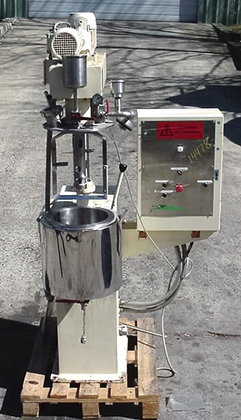

7 gallon/25 liter (wc) triple motion agitated, jacketed, vacuum mixer by euro machine (decines, fr.) model "trimix, serial # a 4750. Features all stainless steel sanitary wetted parts. 290 mm diameter x 390 mm depth mixing vessel with jacketed, insulated, stainless steel shrouded body with polished finish. Shell is designed for vacuum service, slight dish bottom with 1/2" center bottom outlet, flush seating ball valve and 22" floor clearance, vessel is mounted on single swivle point and rotates to 110 degrees when agitator is raised out of vessel, triple motion mixer is mounted on hydraulic lift with fill scraping agitator, counter rotating blades and homogenizer all with independent dual speed drives, 380/415 volt/50 hz/3 phase, (test run on 440/3/60), flat cover with vacuum seal, illumination port, sight glass with wiper, vacuum inlet, ingredient inlet with quart hopper and ball valve, cabinet style base with on board hydraulic pump and control box.
