100 gallon.double motion agitated vacuum
Marlboro Township, NJ
100 Ss 9 Mt


Processing equipment in United States
Subcategory 2:

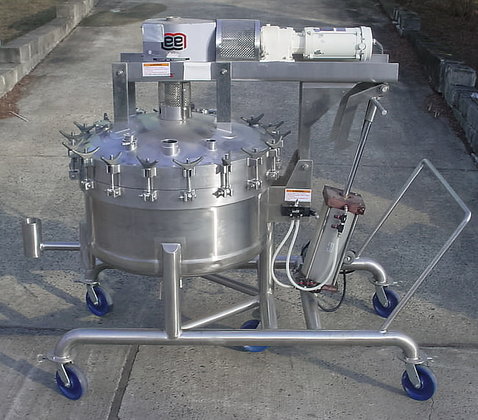

Features all 316 stainless steel wetted parts with national board rated vessel ( # 9399) for vacuum to 75 psi service at temperatures from -20 to 300 degrees farenheight, apx 40" diameter x 20' straight side with dish bottom, dome top mounted from pneumatically operated tilting bridge with drive and counter rotating scraper agitator for complete tilt out movement, lid and vessel body secure with 18 swing mounted manually operated thread down closures, agitator mechanical shaft seal, cover has four 2", two 3" inlets with tri clamp connections and one 6" port with sight glass, electropolished internal finish with flush temperature well and center bottom dishcharge with lee fluids flow manually operated ball valve and 2" tri clamp connection with 16" floor clearance, mounted in floor frame 8' long x 4" wide with push handle and 6-8" locking casters with locking swivle, 6. 5' total height and 8' ceiling needed with cover in full open position, 2 horsepower inverter duty gear head motor by reliance direct coupled to factory 4 to 1 double motion gear box for apx final agitator speed of 25 rpm, 230/460/3 phase voltage, motor is rated for hazardous locations by underwritters laboratories under class 1/groups c & d and class ii/groups e,f & g. New in 2003 with factory improvements in 2004 former use is food additives. Furnished with new agitator scrapers.
