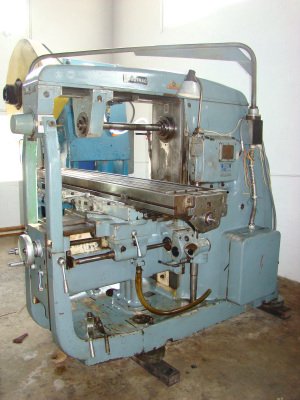

No. FWA-41M, POLAMCO, 16" x
Location:
Hialeah, FL
Manufacturer:
N/A

Specifications

Condition:
used
Stock number:
5972
Division:
Metalworking
Subcategory:
Millers, universal

Description

Model FWA-41M
Year of Manufacture 1985
SPECIFICATIONS:
Table working size 79" x 16"
Table swivels (left and right) +/- 45 degrees
Spindle speeds--number 21
--range 28 to 1,300 RPM
Spindle taper #50 MT
Table travel--longitudinal 42-1/8"
--cross 14-1/8"
--vertical 17-1/3"
Distance from spindle to table--maximum 17-1/3"
Table feed rates--number 32
Feed rates--Longitudinal 1/2 to 42 IPM
--Cross (3/4 of long) 3/8 to 31 IPM
--Vertical (1/2 of long) 1/4 to 20 IPM
Rapid travel rates 99 IPM
Main spindle motor 15 HP
Weight, approx. 12,500 lbs
Dimensions (W x L x H) 95" x 104" x 78"
EQUIPPED WITH:
Horizontal arbor with two (2) arbor supports, Coolant system, Leveling pads
Pendant control, Rapid travers in all three directions,
Extension braces for extreme heavy cuts, Automatic lubrication
