Top Seller

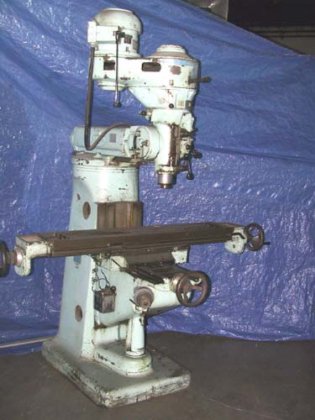

No. 747 WELLS INDEX Vertical
Location:
Hialeah, FL
Manufacturer:
N/A

Specifications

Condition:
used
Stock number:
4022
Division:
Metalworking
Subcategory:
Millers, vertical

Description

Model number 747
Serial number 16493
Year of manufacture 1971
TABLE:
Overall size 9" x 46"
T-slots (3) 5/8"
Distance between T-slots 2-1/4"
TRAVELS:
Longitudinal 32"
Cross 12"
Vertical (knee) 12-1/2"
THROAT DIMENSIONS:
Center of spindle to column--min 2-1/2"
--max 28"
Center of table to column face--min 5"
--max 17"
Spindle nose to top of table----min 0
--max 16-1/2"
Head tilt--front to back 45-0-45 degrees
--left to right 90-0-90 degrees
Spindle taper R-8
Spindle speeds--number infnitely variable
--range 50 to 4200 rpm
Quill diameter 3-3/8"
Main motor--208-220/440/3/60 1-1/2 HP
ACCESSORY INCLUDED WITH MACHINE:
One shot lube system
