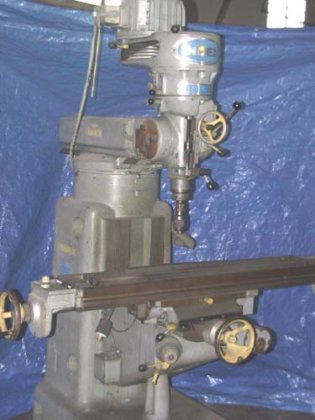

No. 847, INDEX, 9" x
Location:
Hialeah, FL
Manufacturer:
N/A

Specifications

Condition:
used
Stock number:
4019
Division:
Metalworking
Subcategory:
Millers, vertical

Description

Model number 847
Serial number 15787
Year of manufacture 1969
TABLE:
Overall size 9" x 46"
T-slots three-5/8"
Distance between T-slots 2-1/4"
TRAVELS:
Longitudinal 32"
Cross 12"
Vertical (knee) 16-1/2"
Quill 5-1/4"
Overarm 30"
THROAT DIMENSIONS:
Center of spindle to column face--minimum 2-1/2"
--maximum 28"
Center of table to column face ---minimum 5"
---maximum 17"
Spindle nose to top of table -----minimum 0"
---maximum 16-1/2"
Head tilt--front to back 45-0-45 degrees
--left to right 90-0-90 degrees
Spindle taper R-8
Spindle speeds--number 8
--range 75 to 2750
Quill feeds (3) .0015", .003", .006"
Quill diameter 3-3/8"
MOTORS:
(one speed--208-220/440/3/60) 2 HP
ACCESSORIES INCLUDED WITH MACHINE:
Bijur one shot lube system
