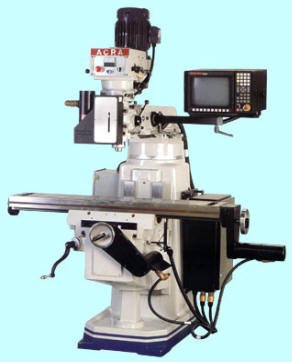

AM5VAC ACRA, 12" x 58"
Location:
Longview, TX

Specifications

Condition:
used
Stock number:
1611
Voltage:
220V/3PH
Division:
Metalworking
Main motor:
5 HP
Net weight:
3960 LBS.
Table size:
12” X 58”
Spindle rpm:
50-5,000 RPM
Quill travel:
Spindle motor:
40
Spindle speed:
INF. VARI.
Quill diameter:
Over ram travel:
21”
Dimensions w x l:
72-1/2” X 58-1/2”
T slot number, size:
3, 5/8”
Cross travel (y axis):
15-1/2”
Longitudinal travel (x axis):
42”
Vertical knee travel (z axis):
16”
Subcategory:
Millers, vertical

Description

SPECIFICATIONS:
TABLE SIZE: 12” X 58”
LONGITUDINAL TRAVEL (X AXIS): 42”
CROSS TRAVEL (Y AXIS): 15-1/2”
VERTICAL KNEE TRAVEL (Z AXIS): 16”
OVER RAM TRAVEL: 21”
T SLOT NUMBER, SIZE: 3, 5/8”
SPINDLE MOTOR: 40
SPINDLE SPEED: INF. VARI.
SPINDLE RPM: 50-5,000 RPM
QUILL DIAMETER: 4”
QUILL TRAVEL: 5”
MAIN MOTOR: 5 HP
VOLTAGE: 220V/3PH
NET WEIGHT: 3960 LBS.
DIMENSIONS W x L: 72-1/2” X 58-1/2”
