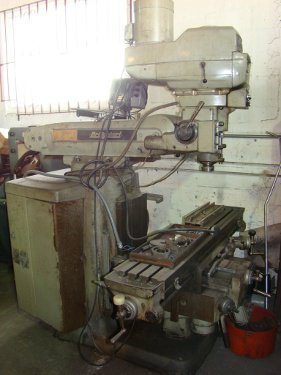

SERIES II, BRIDGEPORT, 11" x
Location:
Hialeah, FL

Specifications

Condition:
used
Stock number:
6087
Note:
Machine missing X & Y axis power feed motor.
Division:
Metalworking
Subcategory:
Millers, vertical

Description

Year of manufacture 1986
SPECIFICATIONS:
SPINDLE:
Main motor 4 HP
Spindle taper #40 quick change
Speeds--number Inf. Variable
--low range 50 to 400 rpm
--high range 450-3500 rpm
Quill travel 5" (125mm)
Quill diameter 4-1/4" (108mm)
TABLE:
Table size 11" x 58" (279mm x 1473mm)
Longitudinal travel 30" (762mm)
Cross travel 15" (381mm)
Vertical knee travel 16" (406mm)
Maximum weight of workpiece 1000 lbs (454 kg)
Width of knee 24"
Ram travel (rack & pinion) 16" (406mm)
CAPACITIES:
Drilling, mild steel--manual 1-1/4" (32mm)
--power feed 3/4" (19mm)
MILLING FEED RATE:
Z axis 3/16-12 ipm (5-305mm)
MILLING RAPID FEED RATE:
Z axis 12 ipm (305mm)
MISC:
Dimensions (L x W x H) 80" x 80" x 93"
Net shipping weight 4750 lbs. (2154 kgs.)
Electrical 220/3/60
ACCESSORIES INCLUDED WITH MACHINE:
FAGOR 2 axis digital readout system, Chrome ways
45 degree table feed control crank, Bijur automatic lubrication system
Power feed to knee, Infinitely variable quill power feed
NOTE: Machine missing X & Y axis power feed motor.
