No. SERIES II SPECIAL, BRIDGEPORT,
Location:
Memphis, TN
Spindle Taper:
R-8

Specifications

Condition:
used
Stock number:
1313
High:
500-4200 RPM
Motor:
2 HP
Speeds:
(Variable) Low................... 60-500 RPM
Voltage:
22/440/3/60
Division:
Metalworking
Table size:
11" X 58"
Cross travel:
15"
Quill travel:
5"
Spindle taper:
R-8
Automatic feeds(3):
0015,.003,.006 IPR
Vertical knee travel:
12"
Approx. overall dimensions:
70"L-R X 74"F-B X 83"H
Longitudinal travel(manual):
33-1/2"
Subcategory:
Millers, vertical

Description

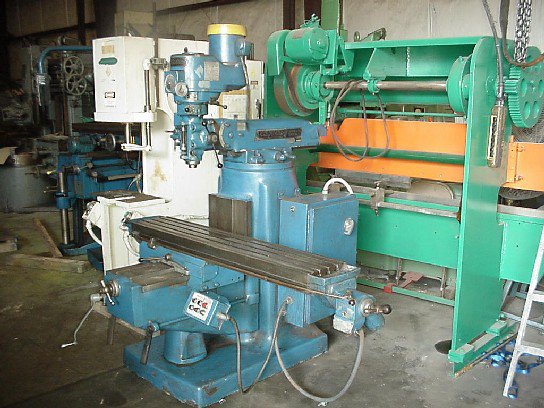

Model Series II Special S/N 2016S
SPECIFICATIONS:
Table Size.............................. 11" X 58"
Spindle Taper........................... R-8
Quill Travel............................ 5"
Automatic Feeds(3)...................... .0015,.003,.006 IPR
Longitudinal Travel(Manual)............. 33-1/2"
Cross Travel............................ 15"
Vertical Knee Travel.................... 12"
Speeds:(Variable) Low................... 60-500 RPM
High.................. 500-4200 RPM
Motor................................... 2 HP
Voltage................................. 22/440/3/60
Approx. Overall Dimensions.............. 70"L-R X 74"F-B X 83"H
EQUIPPED WITH:
Longitudinal Power Feed
Operations Manual
