Top Seller
8 Ton, DENNISON, 1977, WITH
Location:
Ringwood, NJ
Manufacturer:
Index presses
Stroke:
Approx. 18"

Specifications

Condition:
used
Stock number:
2280
Return:
300 IPM
Closing:
330 IPM
Bed size:
21" L-R x 13" F-B
Division:
Metalworking
Pressing:
125 IPM
Ram stroke:
Approx. 18"
Ram diameter:
2-1/2"
Overall dimensions:
52" F-B x 41" L-R x 77" H
Hydraulic pump motor:
5 HP, 3 Phase, 60 Cycle, 208-230-460 Volts
Daylight over the bed:
Approx. 18"
6-position dennison index table:
21" Dia. x 7-1/8" H, Model # IT106R
Subcategory:
Presses, dial feed

Description

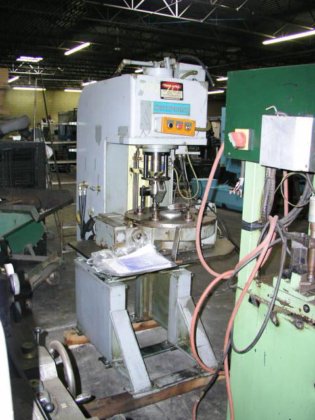

8 TON DENNISON HYDRAULIC PRESS
Serial # 26022 New 1977 Model # WS085MC309SSD367CR5608IT106R
Ram Diameter: 2-1/2"
Ram Stroke: Approx. 18"
Daylight Over the Bed: Approx. 18"
Daylight Over the 6-Position Index Table: Approx. 11"
Micro Switches to Adjust the Length of the Down Stroke & Return Stroke
Bed Size: 21" L-R x 13" F-B
6" Wide x 10" Deep U-Shaped Cutout in Bed
Blanchard Ground Sub-Table Bolted to Bed: 36" L-R x 24" F-B x 5/8" Thick
6-Position Dennison Index Table: 21" Dia. x 7-1/8" H, Model # IT106R
Ram Speeds:
Closing: 330 IPM
Pressing: 125 IPM
Return: 300 IPM
Hydraulic Pump Motor: 5 HP, 3 Phase, 60 Cycle, 208-230-460 Volts
Key Selector Switch for Inch, Single Stroke & Continuous Operation
Electric Schematics & Manuals for the Press & Index Table
Overall Dimensions: 52" F-B x 41" L-R x 77" H
