Location:
Marlboro Township, NJ
Model:
Homogenizer

Specifications

Condition:
used
Stock number:
13607
Subcategory:
Mixers
Subcategory 2:
Homogenizing

Description

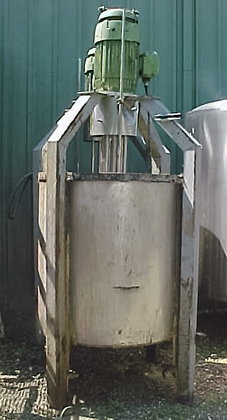

Tank mounted 25 horsepower homogenizer by hill mixers, model 7h, serial # na. Features. U. S. Motors explosion proof direct coupled drive is underwriters laboratory rated for class i, group d service, 3510 rpm, 230/460/3 phase voltage 64. 6/32. 3 amps, 20" diameter flow deflector plate floating with dual position shafts with manual locks, 60" long shaft, 5. 625" diameter turbine (142. 9mm) produces 86' per second peripheral veocity rated for 1000 gallon batch size, mounted in 500 gallon open top vertical tank, 55" diameter x 48" straight side with slight cone bottom tank, 2" center bottom discharge with npt connection and 14" floor clearance, bottom side outlet with female 2" npt connection. Formerly used in mild chemical service (water base adhesives)
