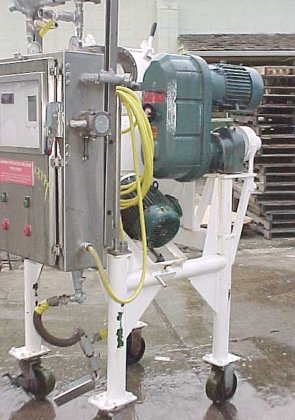

Littleford lodige, 3 cubic foot working capacity (4. 6 cu/ft total capacity) mixer granulator, model fm 130 d, serial # 80002-1179. Featuring all stainless steel sanitary contact surfaces, fully jacketed body, national board rated (# 9781) for 15 psi @ 320 degrees f, 7. 5 horsepower variable speed reeves "ultima" mixer drive, 111-896 rpm and 5 horsepower chopper drive @ 3480 rpm, both drives are explosion proof and rated for class i, groups c & d and class ii, groups e,f & g, 230/460/3 phase voltage, standard top hinged body with 20" x 12" full view opening, 6" x 5" center bottom discharge with manually operated flush valve and 10" diameter discharge hood with 16" od eight bolt flanged connection with 40" floor clearance, 8" diameter top loading port with 10. 5" od flanged connection. Mixer has four plow stations and one chopper (plows are required and bolt to existing arms), includes non factory pressurized control panel containing magnetic starters and mixer timing controls for xp...
