Location:
Marlboro Township, NJ
Model:
Mixer Granulator

Specifications

Condition:
used
Stock number:
13820
Subcategory:
Mixers
Subcategory 2:
Miscellaneous

Description

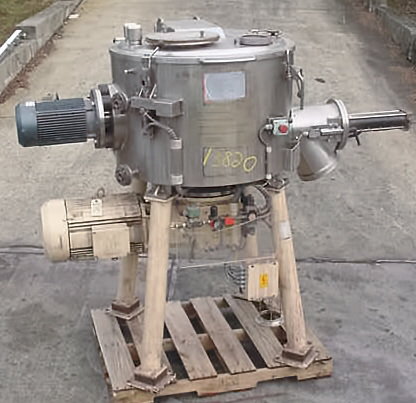

High speed mixer granulator by mti mischtechnik (industrieanlanlagen gmbh) serial #674 (fabrication #) rated for 35 to 300 liter batch sizes, jacketed for 75 bar @150 c, flat bottom mixing chamber 33" diameter x 21. 5" deep with three blade agitator driven by 9. 2 (kw) horsepower eurodrive with gear reducer @1120 rpm / 96 rpm @220/32 phase voltage, 26. 0 amps (440v- 14kw/145 rpm/20. 0 amps, 1680 rpm, ) adjustable internal baffle, side entering chopper with 10 blades and driven by 7. 5 horsepower sew eurodrive @3480 rpm 230/460/3 phase voltage, side discharge @ 34" floor height, flat hinged cover with 2' inlets, sight glass, air vent with filter sock support and 8. 5" service port with swing out cover, mounted on four painted steel legs. Formerly used in branded cosmetic manufacturing.
