Top Seller

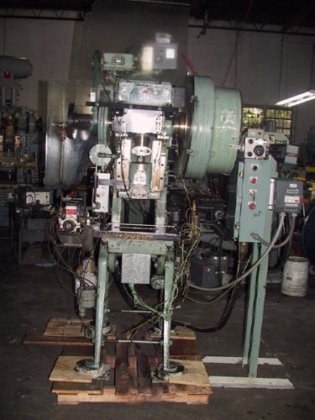

22 Ton, FEDERAL, #2, 1"
Location:
Hialeah, FL
Manufacturer:
N/A

Specifications

Condition:
used
Stock number:
4987
Division:
Metalworking

Description

Model number 2
SPECIFICATIONS:
Capacity 22 tons
Stroke 1"
Adjustment of slide 1-1/2"
Shut height, bolster plate to slide
stroke down adjustment up 8-1/4"
Speed (approx.) up to 300 spm
Throat 5-1/2"
Die bed size 10" x 17-1/2"
Bolster plate thickness 1-1/2"
Motor 2 HP
Electrics 208-230/460/3/60
Weight, approx. 1,850 lbs
EQUIPPED WITH:
Leeson "Speedmaster" adjustable speed controller, Air clutch and brake
Peterson #DDr32XH roll feed, Bijur and Showa automatic lubrication system
Pedestal control panel, Digital rpm display
