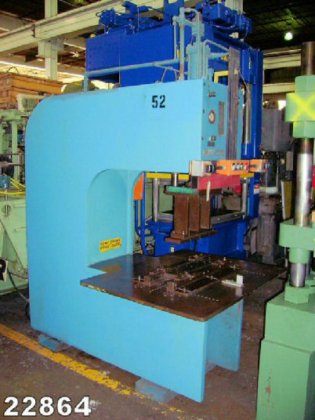

12 Ton, NEFF, '92, 23"Str,
Location:
Memphis, TN
Manufacturer:
Neff presses
Capacity:
12 Ton
Stroke:
0 to 23" Maximum

Specifications

Condition:
used
Stock number:
1369
Stroke:
0 to 23" Maximum
Bolster:
48"L-R X 37"F-B X 1"Thick
Bed area:
22"L-R X 41"F-B
Division:
Metalworking
Throat depth:
30"
Tonnage capacity:
12 Ton
4-post guided slide:
12"L-R X 10"F-B
Floor to top of bed:
31"
Hydraulic pump motor:
15 HP
Approx. machine weight:
7,300 lbs.
Daylight opening(total):
24" Maximum
Ram diameter(at 12 ton):
3.25"/2" @2893 PSI
Approx. overall dimensions:
48"L-R X 85"F-B X 102"H
Subcategory:
Presses, hydraulic

Description

Model 12T S/N P9464(1992)
Tonnage Capacity....................... 12 Ton
Bed Area............................... 22"L-R X 41"F-B
Bolster................................ 48"L-R X 37"F-B X 1"Thick
4-Post Guided Slide.................... 12"L-R X 10"F-B
Stroke................................. 0 to 23" Maximum
Daylight Opening(Total)................ 24" Maximum
Throat Depth........................... 30"
Ram Diameter(at 12 Ton)................ 3.25"/2" @2893 PSI
Floor to Top of Bed.................... 31"
Hydraulic Pump Motor................... 15 HP
Approx. Machine Weight................. 7,300 lbs.
Approx. Overall Dimensions............. 48"L-R X 85"F-B X 102"H
EQUIPPED WITH:
Submerged Hydraulic Pump
Push Button Operation W/Stroke & Pressure Control
Dual Touch Palm Buttons
Selector Switch for Run or Jog
Pressure Gauge
