Location:
Marlboro Township, NJ
Manufacturer:
Bivans
Model:
54 L Convey

Specifications

Condition:
used
Serial number:
9454L284
Stock number:
14631
Subcategory:
Packaging
Subcategory 2:
Cartoning

Description

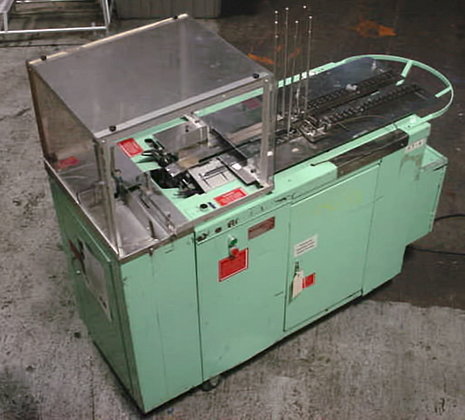

Bivans model 54 l "convey-o-mat" automatic carton erector loader, serial # 94-54l-284. Features cabinet style enclosure in painted mild steel, stainless steel carton handling parts, rated 30-60 cartons per minute by manufacturer, designed for straight or reverse tuck cartons from 7/8" (22 mm) to 5" (127 mm) deep x 3/8" (9. 5 mm) to 3. 5" (89 mm) wide x 1. 25" (32 mm) to 12" (305 mm) tall, lesson 1/2 horsepower main drive, 90 volt dc with variable speed controller mounted in external electrical enclosure with hinged cover, pneumatically operated venturi provides suction for carton pick up arm standing erected carton in vertical position to be mechanically discharged, transparent safety enclosure over carton erection area, 110 volt/1 phase power required, hinged or removalable service doors on three sides, weight 450 lbs, mounted on casters. Formerly used in pharmaceutical packaging.
