Location:
Marlboro Township, NJ
Manufacturer:
Bivans
Model:
54l

Specifications

Condition:
used
Stock number:
15028
Subcategory:
Packaging
Subcategory 2:
Cartoning

Description

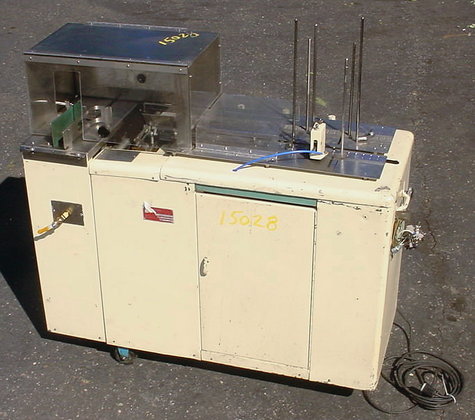

Bivans automatic carton erector "convey-o-mat" model 54l, serial # o-81-659. Features cabinet style enclosure in painted mild steel, stainless steel carton handling parts, rated 30-60 cartons per minute by manufacturer, designed for straight or reverse tuck cartons from 7/8" (22 mm) to 5" (127 mm) deep x 3/8" (9. 5 mm) to 3. 5" (89 mm) wide x 1. 25" (32 mm) to 12" (305 mm) tall, 1/2 horsepower main drive, 110 volt single phase with manually operated variable speed pulley with external control, gast vacuum pump with drive mounted in cabinet provides suction for carton pick up arm standing erected carton in vertical position to be mechanically discharged, hinged or removalable service doors on three sides, weight 450 lbs, mounted on casters. Formerly used in pharmaceutical packaging.
